YOUDO Factory Fixed Hydraulic Hinge YD-602A Kitchen Furniture Soft Closing Cabinet Hinges

Hinges - Guides - Drawers

YOUDO Factory Fixed Hydraulic Hinge YD-602A Kitchen Furniture Soft Closing Cabinet Hinges

  • Brand Name YOUDO
  • Product Name Fixed Hydraulic Cabinet Hinges
  • Product NO. YD-602A
  • Material Iron
  • Arm Style Full-overlay
  • Opening Angle 95°
  • Cup Dia. 35mm
  • Weight 88g
  • Hole Distance 48mm
  • Door Thickness 14-24mm
  • Door Dimension 3-7mm
  • Finishing Nickle Plated
  • Cycle Test Over 50000 times
  • Salt Spray Over 48 hours
  • Function The depth regulate ±2mm; height ±2mm; door covering +4mm
  • Nomal Packing (1) 2 hinges/polybag, with screws (2) 2 hinges/polybag, no screws (3) 200 hinges/polybag, then an export carton (4) customized packing

About this product

    • Durable and Long-Lasting: The YOUDO Factory 35mm Cup Fixed On Concealed Hinge is crafted from high-quality iron with a nickel-plated finish, ensuring a sturdy and corrosion-resistant construction that can withstand heavy use in various applications, including kitchens, bathrooms, and offices.
    • Soft Close Functionality: This hydraulic hinge features a concealed design that allows for smooth and quiet door closure, making it ideal for high-traffic areas where noise and wear-and-tear are a concern. The soft close functionality also helps reduce wear and tear on the door and hinge.
    • Versatile Application: With its wide range of applications, this hinge can be used in various settings, including homes, offices, hotels, hospitals, schools, and commercial spaces, making it a convenient solution for multiple environments.
    • Adjustable and Customizable: The hinge is designed to accommodate doors of varying thicknesses (14-24mm) and dimensions (3-7mm), allowing for a seamless fit in different settings.
    • Easy Installation: The hinge's concealed design and adjustable features make it easy to install, ensuring a hassle-free experience for the user, with minimal disruption to daily activities.

Product Type

Full Overlay

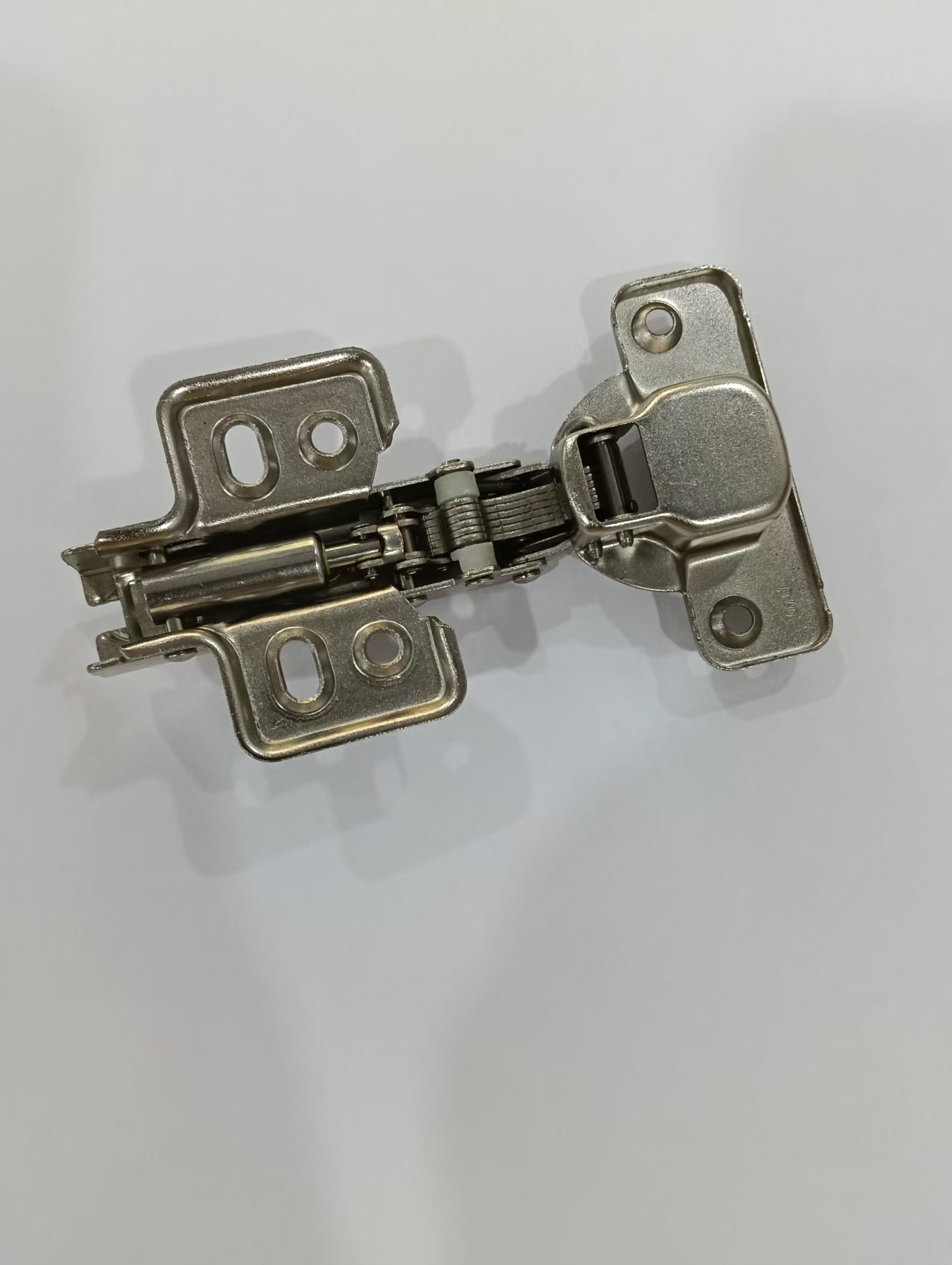

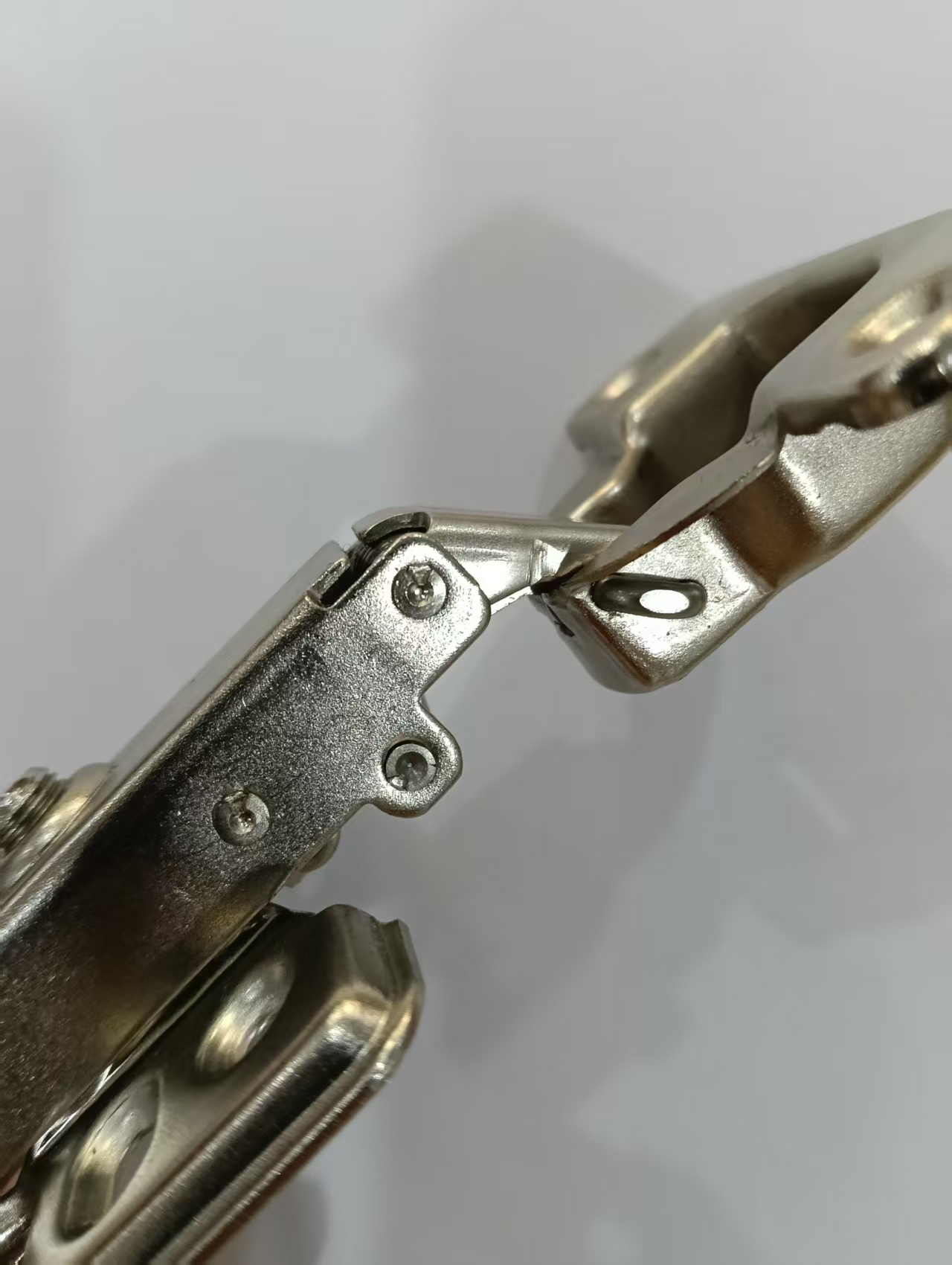

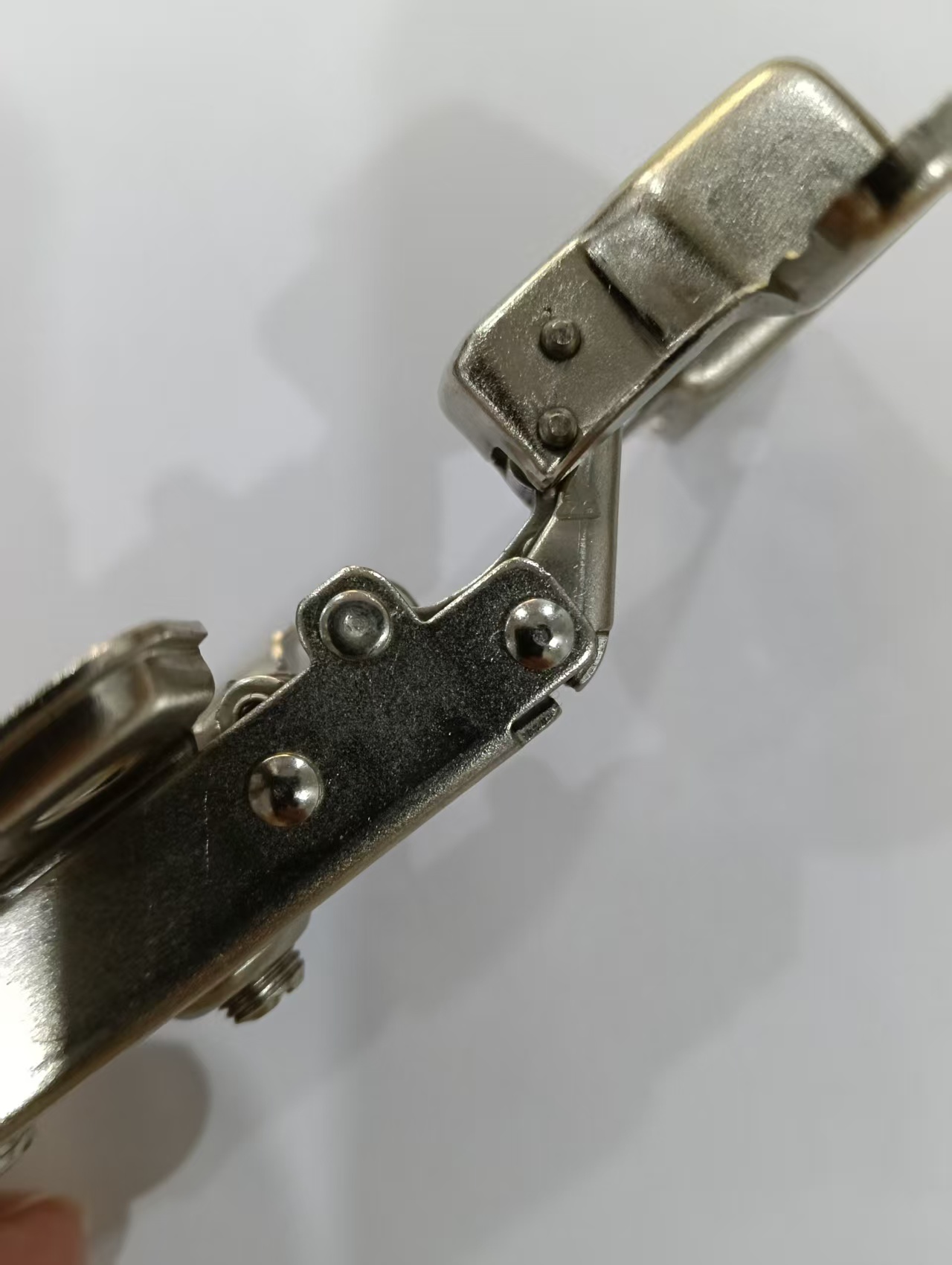

YD-602AYD-602A 1YD-602A

Product Details

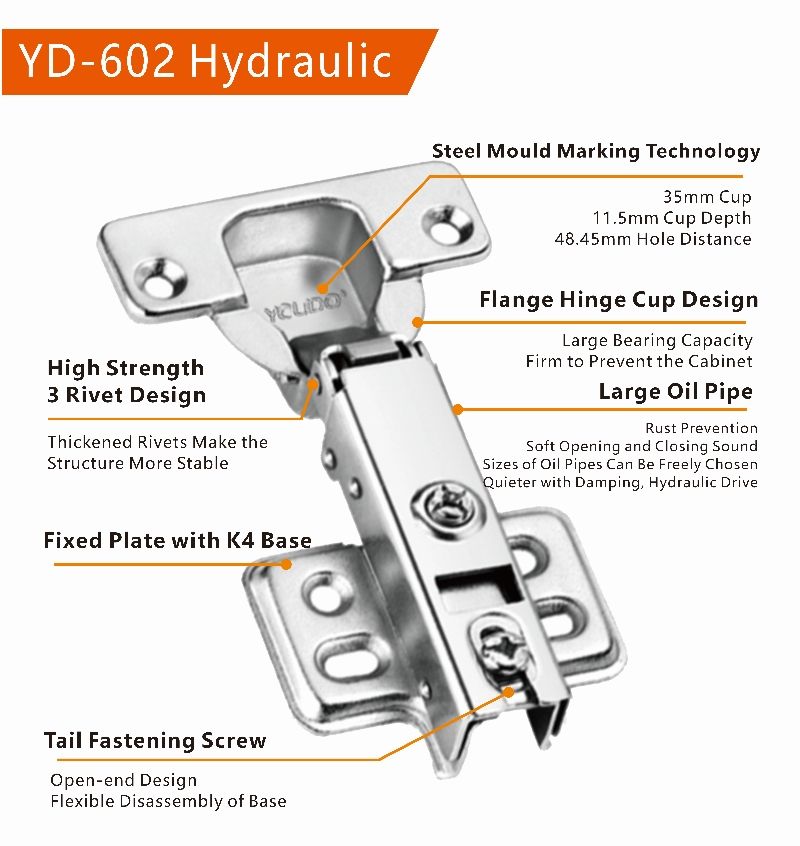

YD-602 EnglishYD-602 side2YD-602 inside

YD-602 use

Contact
for A Free Quote

Our experts will solve them in no time.

Video

Advantage

Selected materialx42

Selected material

Hydraulic bufferfcq

Hydraulic buffer

Multilayer electroplatingdp0

Multilayer electroplating

Strong load bearingvzi

Strong load bearing

Durablengt

Durable

Easy installationggb

Easy installation
